Features :
- Full design capacity.
- Fast charging and easy recovery from deep discharge.
- Excellence capacity and better deep cycle performance.
- Float level indicator provided to check battery’s solution level.
- Highly resistant to extreme environment conditions.
- Special additive for the better charge acceptance and retention of charge.
- Spine casting done on automated pressure die casting machines.
- Batteries are made with state-of-the-art advance technology.
- Separate drying machine for the uniform and complete drying of plates.
- High impact polypropylene battery case for the durability.

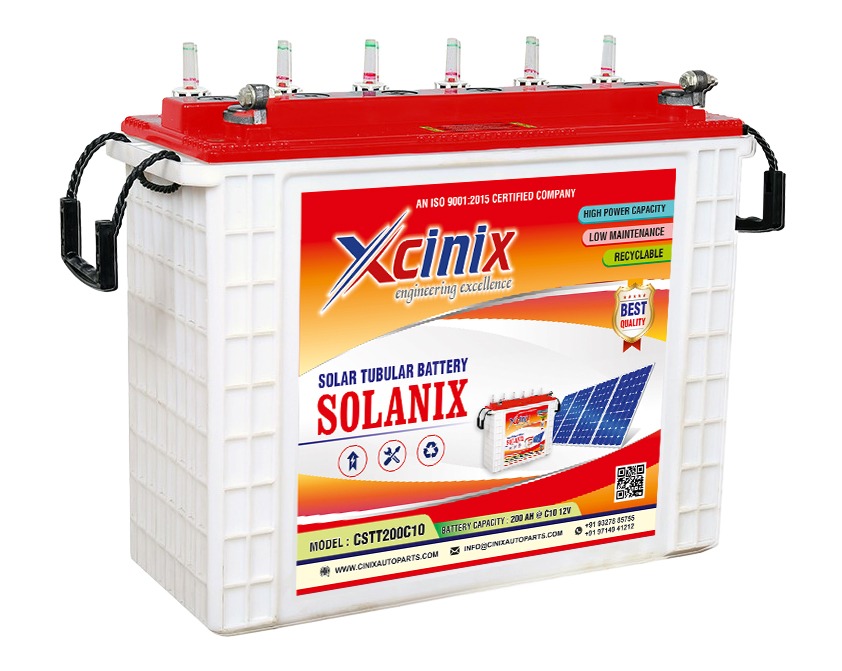

Types ofBattery | Model Name | Nominal Voltage | Capacity | Overall Dimensions | Container
Type |
||
(V) | (Ah) | L(mm) | W(mm) | H(mm) | |||
Short Tubular C20 Series | CSST55C20 | 12v | 55Ah@C20 | 306 | 173 | 223 | PPCP |
CSST75C20 | 12v | 75Ah@C20 | 410 | 176 | 235 | PPCP | |
CSST100C20X | 12v | 100Ah@C20 | 410 | 715 | 272 | PPCP | |
CSST100C20 | 12v | 100Ah@C20 | 525 | 285 | 285 | PPCP | |
Tall Tubular C20 Series | CSTT120C20 | 12v | 120Ah@C20 | 503 | 189 | 411 | PPCP |
CSTT150C20 | 12v | 150Ah@C20 | 503 | 189 | 411 | PPCP | |
CSTT180C20 | 12v | 180Ah@C20 | 503 | 189 | 411 | PPCP | |
CSTT200C20 | 12v | 200Ah@C20 | 503 | 189 | 411 | PPCP | |
CSTT225C20 | 12v | 225Ah@C20 | 503 | 189 | 411 | PPCP | |
CSTT250C20 | 12v | 250Ah@C20 | 503 | 189 | 411 | PPCP | |
CSTT270C20 | 12v | 270Ah@C20 | 503 | 189 | 411 | PPCP | |
Tall Tubular C10 Series | CSTT100C10 | 12v | 100Ah@C10 | 503 | 189 | 411 | PPCP |
CSTT120C10 | 12v | 120Ah@C10 | 503 | 189 | 411 | PPCP | |
CSTT150C10 | 12v | 150Ah@C10 | 503 | 189 | 411 | PPCP | |
CSTT180C10 | 12v | 180Ah@C10 | 503 | 189 | 411 | PPCP | |
CSTT200C10 | 12v | 200Ah@C10 | 503 | 189 | 411 | PPCP | |
CSTT225C10 | 12v | 225Ah@C10 | 503 | 189 | 411 | PPCP | |
CSTT250C10 | 12v | 250Ah@C10 | 503 | 189 | 411 | PPCP |
